My Lab Equipment

Aus DL8RDS Wiki
(Weitergeleitet von The Station)
Wechseln zu: Navigation, Suche

1 Location

2 Radio Equipment

2.1 Short Wave

There's some wisdom saying that you need a good receiver first of all. The next thing you should think about is a good antenna. I have been experimenting with several antenna types, mainly with the simpler versions of Inverted Vee and Quad Loop, but I have come to the insight that a good multiband vertical is a decent compromise between space consumption and multiband usability. That's why I have purchased a GAP TITAN. The next thing to consider is a sufficiently good transmitter. I solved the transmitter / receiver question first by buying a sturdy Kenwood TS-520S valve TRX. A very good decision, I must say now 15 years later. Around 2001 I bought a second hand TS-930SAT, and this is now my core device.

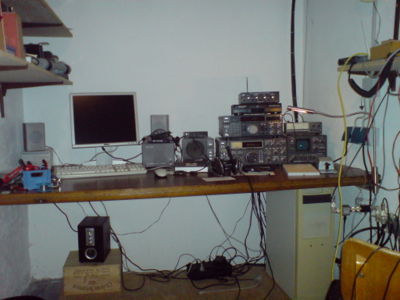

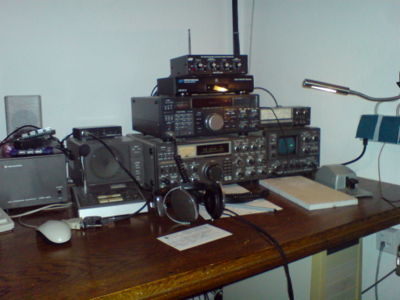

Here's an overview of my nice little shortwave toys:

2.2 VHF

2.3 Digi modes

  • TNC2S, terminal node controller for 1,2 kBit/s
  • TNC2H, terminal node controller for 9,6 kBit/s
  • TNC2Multi, terminal node controller for 1k2 and 9k6
  • SCS PTC2, a PACTOR modem

2.4 Antennas

As a member of DARC e.V. I enjoy full insurance of all antennas:

3 Marine Radio

As a vacational sailor and holder of two naval radio degrees (SRC-equivalent, LRC), I own and operate these devices:

See also: Icom BP-84 Repair

4 Computer Science Equipment

4.1 Embedded devices

Hardware:

Software:

4.2 Network connection

  • modern DSL connection, 16 MBit/s
  • HAMNET connection 34 MBit/S voa DB0MHB, DB0HSR
  • Mikrotik CRS 125 as a central router architecture
  • standard 1 GBit network speed
  • fiber interconnect

4.3 Core Workstation BMH1

  • Productive System
  • 2,66 GHz Intel Core Duo
  • 4 Gb RAM
  • Ubuntu 14.4 OS

4.4 2 identical Laptops DELL Precision M6500

  • Productive...
  • 1,87 GHz i7 CPU 8 Core
  • 32 GB RAM
  • Ubuntu 14.4 OS

4.5 APC SmartUPS-3000VA

  • Electrical BackUp for availability and failover experiments
