Building an extremely small ARPS Tracker

Aus DL8RDS Wiki
Wechseln zu: Navigation, Suche

1 Project goal

This project has the goal to assemble a lowest possibly imaginable power saving and absolute supercompact highly packed APRS tracking transmitter. At last, I want to be able to visualize my position...!

2 Ingredients

At last, I got all my ingredients collected:

3 Data

3.1 Datasheets

3.2 References

3.3 Other data

The tracker's inner values:

   * Voltage: DC 6.5 to 28V unregulated or 5V DC regulated
   * Current: 8 mA idle, 20 mA transmitting Max 200 mA @ 5 V available for GPS
   * Modes: 1200 bps AFSK (send and receive); 300 bps AFSK, PSK31 (send only)
   * Radio Connector: pin header
   * Serial Connector: pin header
   * Dimensions: 31mm x 18mm x 5mm
   * GPS interface: NMEA in/out

Pinout:

Pin  Name   Funktion
1    5VIN     Geregelter 5-Volt-Eingang
2    RxD      RS-232 Data in der (vom GPS oder Computer)
3    1Wire    Dallas 1-Draht-Bus für externe Sensoren
4    AOUT     Audio-Ausgang an Radio
5    ADC5     Analog-Eingang
6    T1CH1    Timer-Kanal
7    ADC6     Analog-Eingang
8    RST      Reset (active low)
9    ADC7     Analog-Eingang
10   IRQ-     Transmit-now, Profil wählen, oder Zähler
11   ADC8     Analog-Eingang
12   ADC9     Analog-Eingang
13   AIN      Audio-Eingang von Radio
14   ADC4     Analog-Eingang
15   ADC3     Analog-Eingang
16   TXD      RS-232 Data aus
17   rot      rot LED-Ausgang
18   grün     grün LED-Ausgang
19   ADC2     Analog-Eingang
20   ADC1     Analog-Eingang
21   PTT      Push-to-talk-Signal an Radio
22   REGOUT   Regulator-Ausgang - 5 Volt
23   GND      Ground
24   REGIN    Regulator-Eingang - 6,5 bis 28 Volt

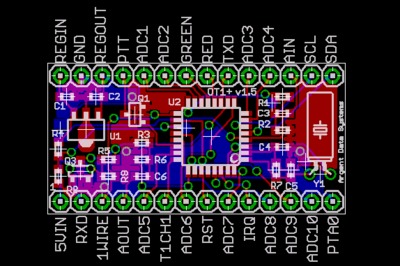

The following picture is from ArgentData:

OT1SMT Belegung.png

And here's how to use the USB / Serial adapter from the Arduino projects: http://arduino.cc/en/Guide/ArduinoMini

I am using this adapter to program the SMT chip.

4 Project plan

  • Find a cabling arrangement that works on my BreadBoard, using the Arduino USB/Serial interface.
  • Rearrange all the three components on minimal space
  • Build a suitable case
  • Program the Opentracker SMT
  • Deploy and Track

5 Progress

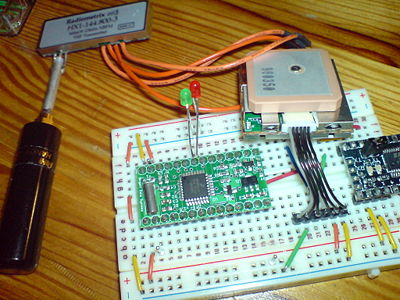

  • 2009-11-05 I got my GPS box up and running. Produces really nice output. Also got the Radiometrix transmitter up and running. Produces a nice signal. Now I still need to get the OpenTracker up and running.

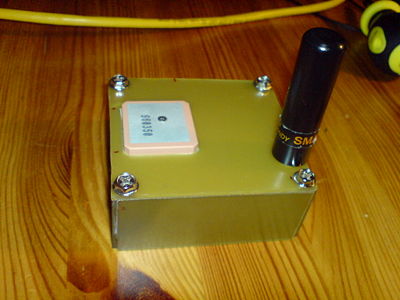

  • 2009-11-07 Well, the tracker is not so small after all, but it still all fits into my palm, and this all includes the battery. The case is now ready and I am just finalizing everything. Still need to program the uC with my callsign.
  • 2009-11-11 I heard recently that there's going to be a new APRS repeater in our region (DB0SAD). At last, I can use the device as a counterpart for my APRS node, which is currently inactive: Using the ASUS WL-500gP as a APRS digi
  • 2009-11-14 I see that it is necessary to connect RegOut (5V out from the voltage regulator) with the RegIn that expects 5V input. This is necessary that the CPU can run. I also see that the HX1 module and the Tracker just like that won't co-oeprate. The OT+ draws PTT to LOW, but the HX1 expects PTT ro be HIGH (same voltage as Input Power). I solve the problem with a BC337 (general purpose) PNP and a 4.7kOhm transistor. Yet, still my tracker does not want to transmit...


6 Assembly

Still on the breadboard...

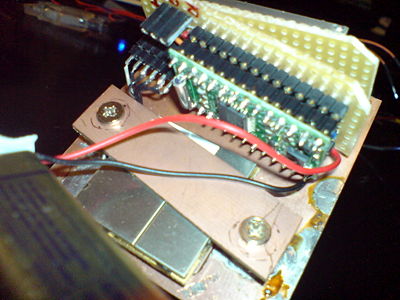

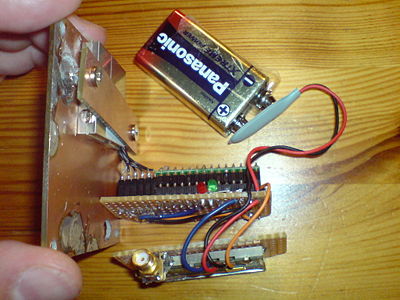

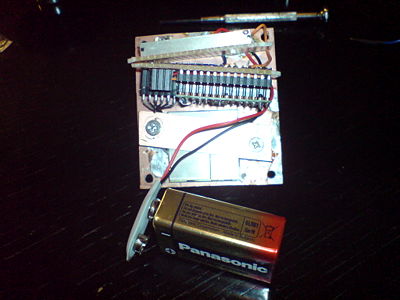

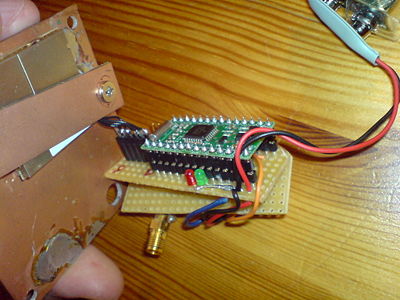

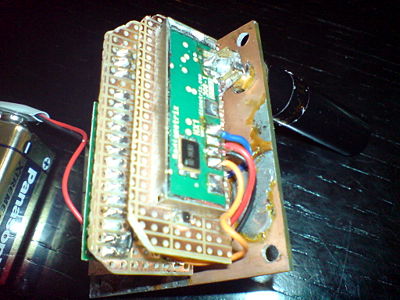

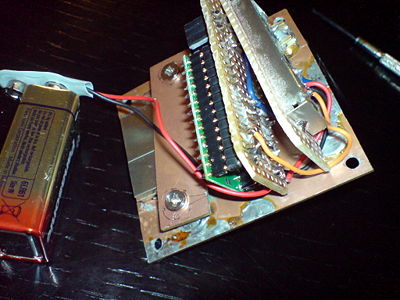

Assembly... In other projects I have made excellent experiences with U-profiles that can hold PCB boards. Also in this case I took small snippets of U profiles and soldered them into the base box so they can hold both my carrier boards for the OpenTracker and for the RadioMetrix module.

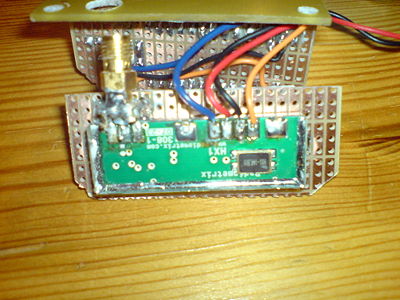

RadiometrixHX1-144.800-3.jpg MyOwnOpenTrackerSMT-MountedSlots.jpg

MyOwnOpenTrackerSMT-MountedSlots2.jpg MyOwnOpenTrackerSMT-MountedFinal.jpg

MyOwnOpenTrackerSMT1.jpg MyOwnOpenTrackerSMT2.jpg

MyOwnOpenTrackerSMT3.jpg MyOwnOpenTrackerSMT4.jpg

400px 400px

7 Tests

  • Since I have my APRS relay station ready to go anyway, I just need the tracker to start tracking!
